SHELTON CONDO HANGAR 91

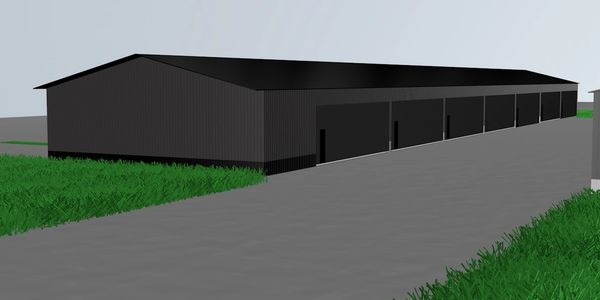

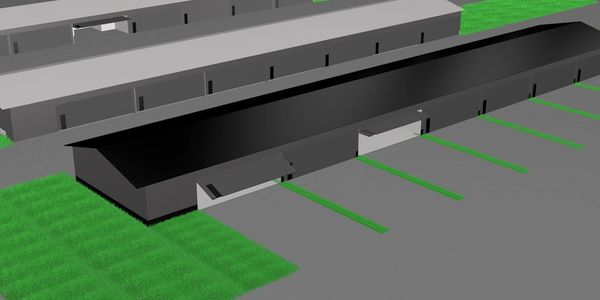

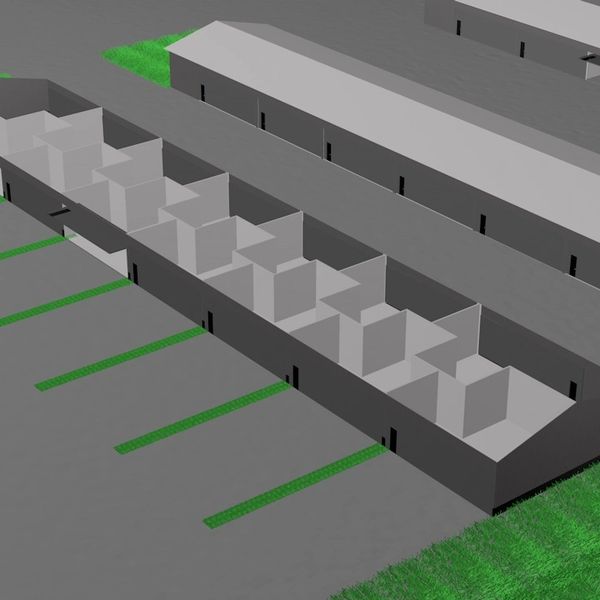

New premium 60’x340’x19’ T-hangar with 14 fully insulated units coming to KSHN Sanderson Field Airport in Shelton, WA

Fall/Winter 2024

• Schweiss Bifold Door with lift straps and mandoor; R-21 insulation with white WMPVRR backing (1,836 sqft & 1,806 sqft units will have a 46’x14’ hangar door. All other units will have a 44’x14’ hangar door)
• Units 1, 7 & 14 will have one 9’x10’ insulated overhead garage door and unit 8 will have one 10’x10’ insulated overhead garage door
• 26-gauge standing seam roof over plywood/OSB decking
• 29-gauge walls with 3’ wainscoting around bottom perimeter
• Fully insulated with R-21 in exterior walls, R-13 in separation walls and R-49 in the ceiling
• Natural gas hydronic floor heat with R-10 rigid foam insulation. Each unit will have their own manifold with a micro switch to shut off the heat when the hangar door is open.
• Sheetrocked and painted
• 25” overhang around perimeter with enclosed metal soffits
• 4” concrete floor with fibermesh and saw cut joints
• Each unit will have a sub panel capable for 50 amp service
• Bright LED Lighting
• Wired for high-speed internet
